HELIOS RS

…the spirit of cross country!

The name HELIOS is a tribute to the sun, which is what makes cross-country flights and flying adventures possible in the first place.

Helios RS is the name of our new C-class lightweight performance glider. With the Helios RS we have addressed the dogma that more performance means a less comfortable flight. With its unique construction, lightweight no longer needs to mean there will be a sharp drop off in performance over time.

Helios RS is the name of our new C-class lightweight performance glider. With the Helios RS we have addressed the dogma that more performance means a less comfortable flight. With its unique construction, lightweight no longer needs to mean there will be a sharp drop off in performance over time.

Even during its development phase, the XC all-rounder became our test pilots’ absolute favorite wing with its direct and precise handling.

Having a lightweight glider with the Helios RS level of performance, low pack volume, combined with incredible comfort will encourage you to experiment with alternative launch sites and new routes away from the beaten track. And should conditions ever become more demanding, the HELIOS RS is very easy to control for a glider in the C-class, thanks to the RAST system.

Where the AGERA RS is designed for fast and uncompromising gliding, the HELIOS RS is a totally new and uniquely designed glider. The precision tool in the box, with agile and precise handling, happy in all conditions it will deal calmly and confidently with difficult situations, temperamental thermals and strong turbulence making it the perfect lightweight glider for all your adventures.

  • Powerful XC-wing with a canopy weight from 3.6 kg

  • Combines sportiness of the C-Class with maximum flight comfort

  • Innovative  construction for a easy handling and stability

light weight
sporty
versatile

Who is the HELIOS RS for?

You dream of epic XC flights off the beaten track? You want to explore unknown terrain with light luggage, or simply go relaxed “on the trail” with a focus on the flying experience? Then the predictable and reliable XC all-rounder Helios RS is exactly the right partner for your adventures! Due to its simplicity, the Helios RS is also ideal for newcomers from the C-class.

FEATURES

Buffer Section
Core Section
RAST

On paragliders with RAST the canopy is divided into different internal pressurised sections by one or more fabric panels, some with valves running crossways to the direction of flight. This makes it possible to influence the air flows within the canopy.

With RAST, the air equalisation flows within the paraglider canopy can be regulated through defined openings. This applies both when filling,(during take-off) and when emptying. In the case of pressure loss, e.g. caused by canopy collapse in turbulent air, the relative internal pressure of the CORE section increases, while the BUFFER section absorbs the introduced energy by deformation. Furthermore, RAST can be used as an additional support to the leading and trailing edge, which has a positive effect on flight comfort. As RAST connects the ribs over the entire profile height, the construction has a stiffening effect and reinforcements and/or stiffening elements can be saved or even completely replaced by this special construction method.

In the Helios RS, RAST has been optimized for the following properties:

  • Maximum control and stability in turbulence
  • High canopy stiffness with reduced internal volume
  • Easy launch behavior
Helios RS

This new approach for the design of the HELIOSRS uses far fewer internal components.
This was possible because of the innovative way we combined the use of reinforcement tape and diagonal rib-tapes, with an optimised line geometry and the positioning of RAST.

An increased number of line attachment points in combination with very short top lines means that the HELIOSRS needs only 5cm wide diagonal rib-tapes, and still the canopy maintains all of its rigidity.

We were able to do away completely with the C level reinforcement wires.

This concept has the following advantages:

  • reduction in weight and pack size
  • greater stability in turbulent conditions
  • easier handling on the ground and when packing up
Nylon Protective Hose
NITINOL Wire
Plastic End Cap

Nitinol is a high-strength, temperature- and corrosion-resistant shape memory alloy. The name Nitinol is an acronym for Nickel Titanium Naval Ordnance Laboratory.

This material is well-known in medical technology, and for a long time Swing has been using it as leading edge reinforcement in paraglider design, one of the first paraglider manufacturers to do so. For the HELIOSRS, the Nitinol reinforcements are inserted into nylon tubes. This meant that the cross-sectional area (and thus the contact area for the top surface material) could be increased without having to forego the positive features of the memory alloy (bend-resistance, length and dimensional stability).

Miura RS Speed Limiter

Ballooning on the trailing edge has a considerable influence on a paraglider’s control pressure and handling. That’s why, with the TWIN RS 2, ballooning in this area was reduced to a minimum using 3D shaping, in addition to the tried and tested mini ribs. The trick here is that the mini ribs have internal stitching on the top surface so that none of the threads can get caught up on the ground and pulled out, even when launching in difficult terrain.

The specific control of tensions by 3D shaping at the leading edge in the upper sail has become a standard in paraglider construction in order to make the flow-relevant areas as wrinkle-free as possible. Depending on the model, 3D shaping is either single or double.

We have enhanced the standard 3D shaping with additional 3D shaping at the trailing edge to optimize the aerodynamic efficiency of the miniribs.

Helios RS

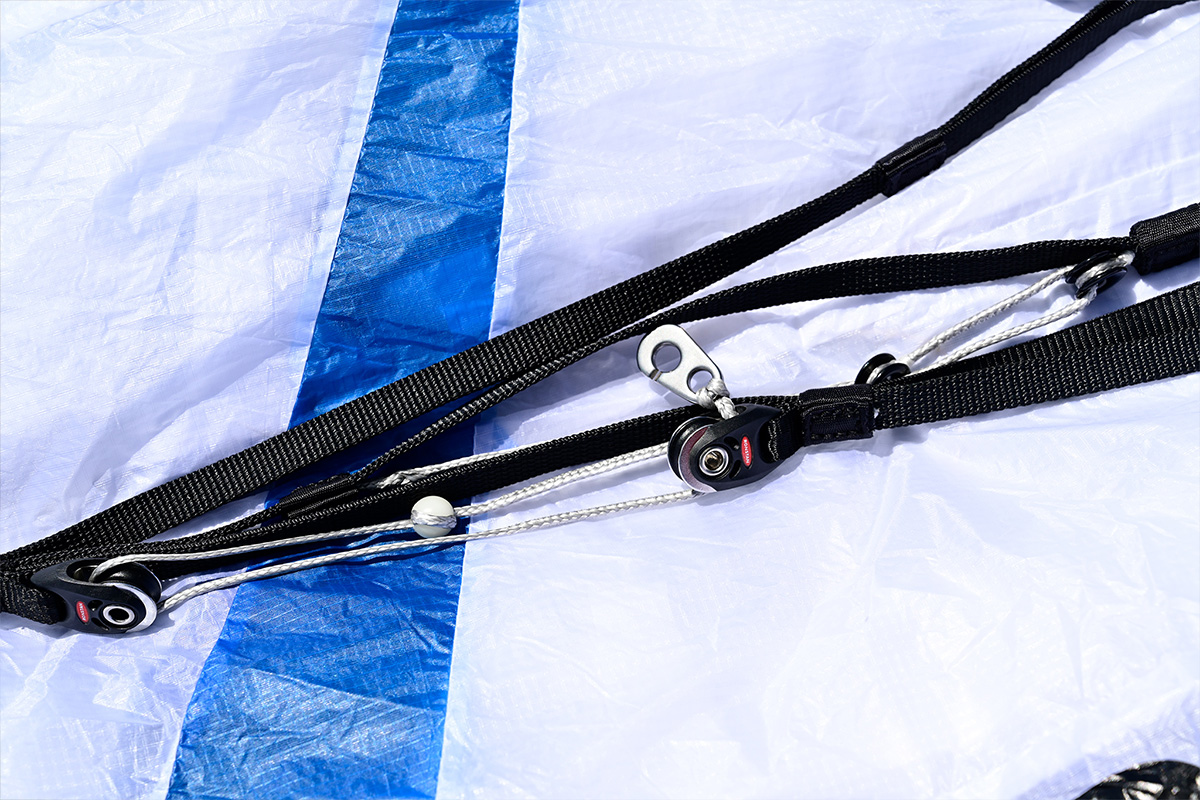

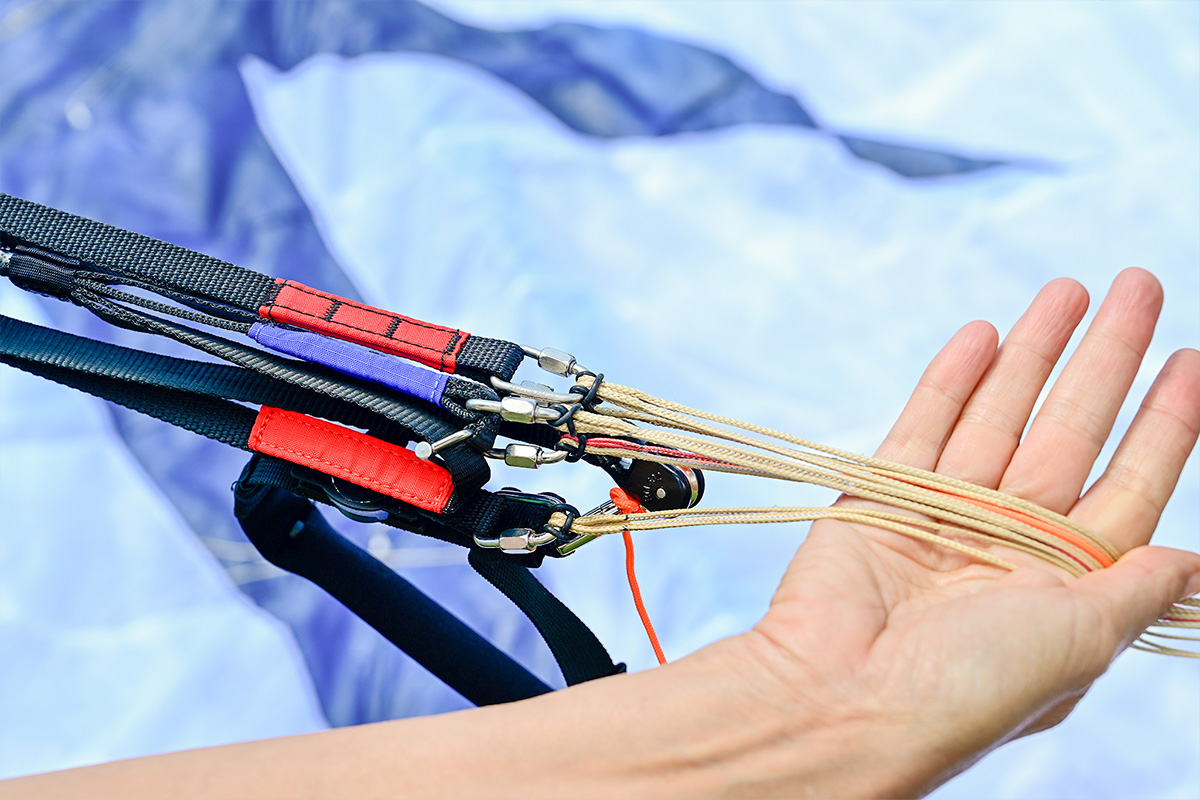

In the HELIOSRS, we replaced our proven C-bridge for pitch control by a rocker linking the C2 riser with the B riser.
Thus, by pulling down the C-riser during accelerated flight, the pilot has a much more effective and efficient control over the angle of attack, without having to ease up on the speed bar.

Performance-focussed pilots are thereby able to actively control and steer the HELIOSRS at speed.
For changes to direction or emergency steering, we recommend steering independently using the C1 riser.

DETAIL PHOTOS

TESTIMONIALS

Great glider, excellent handling and in addition, I could make the first flight on the winch, in weak evening thermals, immediately times a few hundred meters altitude.

I can recommend to everyone!

Martin Lehmann, Germany
When I tested the Helios for the first time at the Stubai Cup, I immediately noticed the direct handling. The glider reacts without delay to control line inputs and can thus be placed playfully in the core of any thermal.

I tested both the S and M sizes and surprisingly experienced no disadvantages due to the lower wing loading. On the contrary, the larger Helios went around corners just as well as the S size. At the same time, the small pack size and light weight is super to carry the glider to remote launch sites.

Richard Angerer, Germany

Recommend the HELIOS RS!
